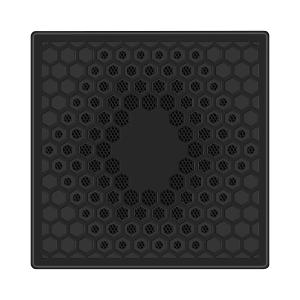

Passive Cooling MINI PC with Intel Gemini lake Pentium J5005 AC1-Z (sku: AC1-Z-J5005)
Features
Innovating productivity with an all-new passive cooling chassis design.
Passive cooling hardware capable of up to a 10W TDP processor to deliver the most powerful performance in complete silence
Quick Details:
1. Living room computer.
2. Instead of the traditional mainframe computer.
3. The need to build super-mini or ultra-low power consumption, industry-specific applications.
4. Palm-Sized Computer
5. High Grade Aluminum Alloy Shell
6. Fanless/Aluminum Housing
7. Strong performance of small size and low power consumption are saved two-thirds of shipping freight
Description
Computing System
Processor: Intel Gemini lake Pentium J5005(quad-core 1.5GHz, up to 2.8GHz)
Chipset: Intel
Memory: 1 x DDR4-2666/2400 SODIMM Slot (up to 16GB)
Graphics
Graphics Engine: Intel UHD Graphics 605 (Integrated)
Video Output: 2 x HDMI 2.0 (up to 3840x2160@60Hz)
Storage
Hard Drive: 1 x 2.5-inch SATA 6.0 Gbps SSD/HDD slot
M.2 : m.2 2280 SATA SSD
Card Reader: 3-in-1 (SD/SDHC/SDXC)
I/O Ports
Audio: Stereo output
Loss-less Bitstream via HDMI
Microphone in
USB Port: 2 x USB 3.0
2 x USB 2.0
LAN: 1 x 10/100/1000Mbps
Antenna: Internal, dual antenna
Wifi: 802.11ac
Bluetooth: 5.0
Mechanical
Kensington Lock: Yes
LED Indicators: Power, Power Supply
AC Adaptor : DC12V25A
Cooling system: Passive cooling
Dimensions: 129mm x 129mm x 48mm (5.08in x 5.08in x 1.89in)
Case Mounting: VESA Mount
Miscellaneous
Supported OS: Windows 10 Home/Pro, Ubantu
Accessories: 1 x AC adapter
1 x User manual
1 x VESA Mount (with 4 screws)
Product Details
Using ares:
I/O Ports
VESA:
